Element ProductDataQualityCheckType / Type
Annotations

The Type element defines the area to which this product data quality verification and validation check applies.
Diagram
Diagram Traceability_xsd_Complex_Type_ProductDataQualityAreaType.tmp#ProductDataQualityAreaType_AreaEnum Traceability_xsd_Complex_Type_ProductDataQualityAreaType.tmp#ProductDataQualityAreaType_OtherArea Traceability_xsd_Complex_Type_ProductDataQualityAreaType.tmp#ProductDataQualityAreaType
Type ProductDataQualityAreaType
Properties
content complex
Children AreaEnum, OtherArea
Instance

<Type xmlns="http://qifstandards.org/xsd/qif3">
  <AreaEnum>{1,1}</AreaEnum>
  <OtherArea>{1,1}</OtherArea>
</Type>
Source

<xs:element name="Type" type="ProductDataQualityAreaType">
  <xs:annotation>
    <xs:documentation>The Type element defines the area to which this product data quality verification and validation check applies.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Traceability.xsd
Element ProductDataQualityCheckType / Description
Annotations

The Description element describes this particular product data quality verification and validation check.
Diagram
Diagram
Type xs:string
Properties
content simple
Source

<xs:element name="Description" type="xs:string">
  <xs:annotation>
    <xs:documentation>The Description element describes this particular product data quality verification and validation check.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Traceability.xsd
Element ProductDataQualityCheckType / Requirements
Annotations

The Requirements element defines the requirements of this product data quality check in natural language.
Diagram
Diagram
Type xs:string
Properties
content simple
Source

<xs:element name="Requirements" type="xs:string">
  <xs:annotation>
    <xs:documentation>The Requirements element defines the requirements of this product data quality check in natural language.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Traceability.xsd
Element ProductDataQualityCheckType / SourceOfRequiredness
Annotations

The optional SourceOfRequiredness element defines why this product data quality check is requires, i.e., by citing an external customer requirement such as MilStd.
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 0
Source

<xs:element name="SourceOfRequiredness" type="xs:string" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional SourceOfRequiredness element defines why this product data quality check is requires, i.e., by citing an external customer requirement such as MilStd.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Traceability.xsd
Element ProductDataQualityCheckType / ApplicationTool
Annotations

The optional ApplicationTool element gives information about the software application used to perform this product data quality check.
Diagram
Diagram IntermediatesPMI_xsd_Complex_Type_SoftwareType.tmp#SoftwareType_id Primitives_xsd_Element_Attributes.tmp#Attributes IntermediatesPMI_xsd_Complex_Type_SoftwareType.tmp#SoftwareType_VendorName IntermediatesPMI_xsd_Complex_Type_SoftwareType.tmp#SoftwareType_ApplicationName IntermediatesPMI_xsd_Complex_Type_SoftwareType.tmp#SoftwareType_Version IntermediatesPMI_xsd_Complex_Type_SoftwareType.tmp#SoftwareType_Description IntermediatesPMI_xsd_Complex_Type_SoftwareType.tmp#SoftwareType_URI IntermediatesPMI_xsd_Complex_Type_SoftwareType.tmp#SoftwareType_ReferencedStandardIds IntermediatesPMI_xsd_Complex_Type_SoftwareType.tmp#SoftwareType
Type SoftwareType
Properties
content complex
minOccurs 0
Children ApplicationName, Attributes, Description, ReferencedStandardIds, URI, VendorName, Version
Instance

<ApplicationTool id="" xmlns="http://qifstandards.org/xsd/qif3">
  <Attributes n="">{0,1}</Attributes>
  <VendorName>{1,1}</VendorName>
  <ApplicationName>{1,1}</ApplicationName>
  <Version>{0,1}</Version>
  <Description>{0,1}</Description>
  <URI>{0,1}</URI>
  <ReferencedStandardIds n="">{0,1}</ReferencedStandardIds>
</ApplicationTool>
Attributes
QName Type Use Annotation
id QIFIdType required
The id attribute is the QIF id of the software, used for referencing.
Source

<xs:element name="ApplicationTool" type="SoftwareType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional ApplicationTool element gives information about the software application used to perform this product data quality check.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Traceability.xsd
Element ProductDataQualityCheckType / XsltFile
Annotations

The optional XsltFile element is the URI for an XSLT file used or to be used in a QIF document XSLT check.
Diagram
Diagram
Type xs:anyURI
Properties
content simple
minOccurs 0
Source

<xs:element name="XsltFile" type="xs:anyURI" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional XsltFile element is the URI for an XSLT file used or to be used in a QIF document XSLT check.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Traceability.xsd
Element ProductDataQualityCheckType / ResultStatement
Annotations

The ResultStatement element makes a statement about the result of this product data quality check in natural language.
Diagram
Diagram
Type xs:string
Properties
content simple
Source

<xs:element name="ResultStatement" type="xs:string">
  <xs:annotation>
    <xs:documentation>The ResultStatement element makes a statement about the result of this product data quality check in natural language.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Traceability.xsd
Element ProductDataQualityCheckType / ResultStatus
Annotations

The ResultStatus element is the status of this product data quality check.
Diagram
Diagram Traceability_xsd_Simple_Type_CheckStatusEnumType.tmp#CheckStatusEnumType
Type CheckStatusEnumType
Properties
content simple
Facets
enumeration PASS
enumeration FAIL
enumeration PENDING
Source

<xs:element name="ResultStatus" type="CheckStatusEnumType">
  <xs:annotation>
    <xs:documentation>The ResultStatus element is the status of this product data quality check.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Traceability.xsd

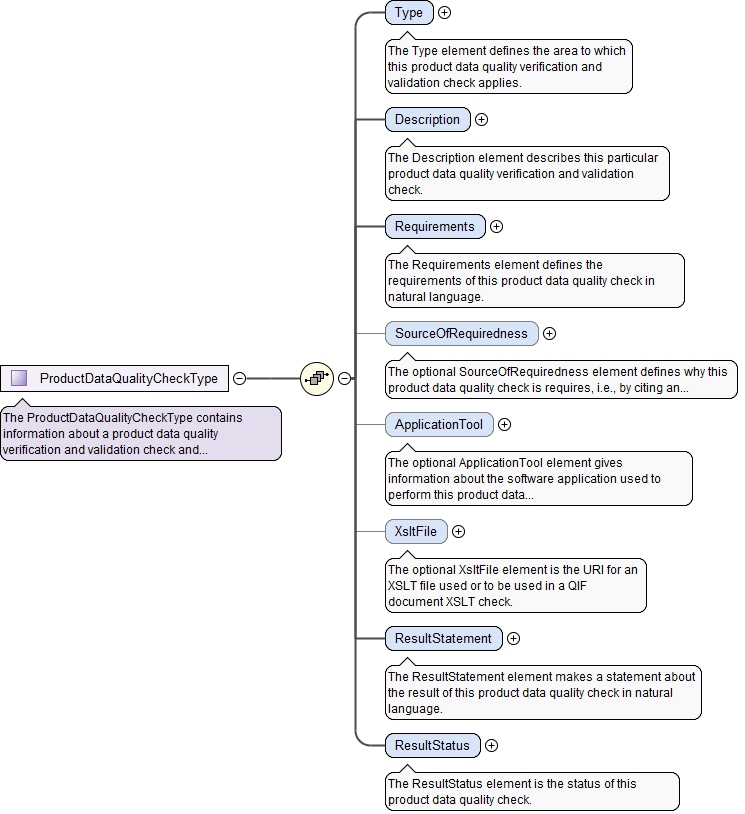

Complex Type ProductDataQualityCheckType
Annotations

The ProductDataQualityCheckType contains information about a product data quality verification and validation check and its result.
Diagram
Diagram Traceability_xsd_Complex_Type_ProductDataQualityCheckType.tmp#ProductDataQualityCheckType_Type Traceability_xsd_Complex_Type_ProductDataQualityCheckType.tmp#ProductDataQualityCheckType_Description Traceability_xsd_Complex_Type_ProductDataQualityCheckType.tmp#ProductDataQualityCheckType_Requirements Traceability_xsd_Complex_Type_ProductDataQualityCheckType.tmp#ProductDataQualityCheckType_SourceOfRequiredness Traceability_xsd_Complex_Type_ProductDataQualityCheckType.tmp#ProductDataQualityCheckType_ApplicationTool Traceability_xsd_Complex_Type_ProductDataQualityCheckType.tmp#ProductDataQualityCheckType_XsltFile Traceability_xsd_Complex_Type_ProductDataQualityCheckType.tmp#ProductDataQualityCheckType_ResultStatement Traceability_xsd_Complex_Type_ProductDataQualityCheckType.tmp#ProductDataQualityCheckType_ResultStatus
Used by
Children ApplicationTool, Description, Requirements, ResultStatement, ResultStatus, SourceOfRequiredness, Type, XsltFile
Source

<xs:complexType name="ProductDataQualityCheckType">
  <xs:annotation>
    <xs:documentation>The ProductDataQualityCheckType contains information about a product data quality verification and validation check and its result.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Type" type="ProductDataQualityAreaType">
      <xs:annotation>
        <xs:documentation>The Type element defines the area to which this product data quality verification and validation check applies.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Description" type="xs:string">
      <xs:annotation>
        <xs:documentation>The Description element describes this particular product data quality verification and validation check.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Requirements" type="xs:string">
      <xs:annotation>
        <xs:documentation>The Requirements element defines the requirements of this product data quality check in natural language.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SourceOfRequiredness" type="xs:string" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The optional SourceOfRequiredness element defines why this product data quality check is requires, i.e., by citing an external customer requirement such as MilStd.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ApplicationTool" type="SoftwareType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The optional ApplicationTool element gives information about the software application used to perform this product data quality check.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="XsltFile" type="xs:anyURI" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The optional XsltFile element is the URI for an XSLT file used or to be used in a QIF document XSLT check.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ResultStatement" type="xs:string">
      <xs:annotation>
        <xs:documentation>The ResultStatement element makes a statement about the result of this product data quality check in natural language.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ResultStatus" type="CheckStatusEnumType">
      <xs:annotation>
        <xs:documentation>The ResultStatus element is the status of this product data quality check.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Traceability.xsd
