Element ProductDataQualityAreaType / AreaEnum
Annotations

The AreaEnum element describes an often-used product data quality area.
Diagram
Diagram Traceability_xsd_Simple_Type_ProductDataQualityAreaEnumType.tmp#ProductDataQualityAreaEnumType
Type ProductDataQualityAreaEnumType
Properties
content simple
Facets
enumeration OVERALL
enumeration PRODUCT_GEOMETRIC_DATA
enumeration PRODUCT_MANUFACTURING_INFORMATION
enumeration BUSINESS_PRACTICE
enumeration DESIGN_PRACTICE
enumeration DERIVATIVE_COMPARE
enumeration UNDEFINED
Source

<xs:element name="AreaEnum" type="ProductDataQualityAreaEnumType">
  <xs:annotation>
    <xs:documentation>The AreaEnum element describes an often-used product data quality area.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Traceability.xsd
Element ProductDataQualityAreaType / OtherArea
Annotations

The OtherArea element describes the product data quality area in natural language.
Diagram
Diagram
Type xs:string
Properties
content simple
Source

<xs:element name="OtherArea" type="xs:string">
  <xs:annotation>
    <xs:documentation>The OtherArea element describes the product data quality area in natural language.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Traceability.xsd

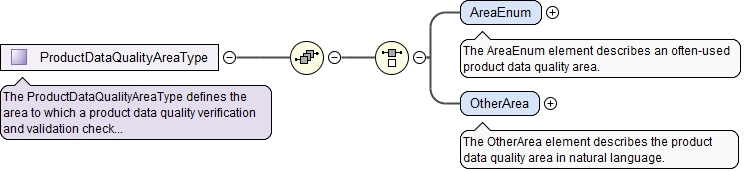

Complex Type ProductDataQualityAreaType
Annotations

The ProductDataQualityAreaType defines the area to which a product data quality verification and validation check applies.
Diagram
Diagram Traceability_xsd_Complex_Type_ProductDataQualityAreaType.tmp#ProductDataQualityAreaType_AreaEnum Traceability_xsd_Complex_Type_ProductDataQualityAreaType.tmp#ProductDataQualityAreaType_OtherArea
Used by
Children AreaEnum, OtherArea
Source

<xs:complexType name="ProductDataQualityAreaType">
  <xs:annotation>
    <xs:documentation>The ProductDataQualityAreaType defines the area to which a product data quality verification and validation check applies.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:choice>
      <xs:element name="AreaEnum" type="ProductDataQualityAreaEnumType">
        <xs:annotation>
          <xs:documentation>The AreaEnum element describes an often-used product data quality area.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="OtherArea" type="xs:string">
        <xs:annotation>
          <xs:documentation>The OtherArea element describes the product data quality area in natural language.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:choice>
  </xs:sequence>
</xs:complexType>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Traceability.xsd
