Element ControlIssueDetailsListType / ControlIssueDetails
Annotations

Each ControlIssueDetails element defines the details of a control issue that was encountered.
Diagram
Diagram Statistics_xsd_Complex_Type_ControlIssueDetailsType.tmp#ControlIssueDetailsType_ControlIssue Statistics_xsd_Complex_Type_ControlIssueDetailsType.tmp#ControlIssueDetailsType_ControlMethodId Statistics_xsd_Complex_Type_ControlIssueDetailsType.tmp#ControlIssueDetailsType_StudyIssueId Statistics_xsd_Complex_Type_ControlIssueDetailsType.tmp#ControlIssueDetailsType
Type ControlIssueDetailsType
Properties
content complex
maxOccurs unbounded
Children ControlIssue, ControlMethodId, StudyIssueId
Instance

<ControlIssueDetails xmlns="http://qifstandards.org/xsd/qif3">
  <ControlIssue>{1,1}</ControlIssue>
  <ControlMethodId xId="">{0,1}</ControlMethodId>
  <StudyIssueId xId="">{0,1}</StudyIssueId>
</ControlIssueDetails>
Source

<xs:element name="ControlIssueDetails" type="ControlIssueDetailsType" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Each ControlIssueDetails element defines the details of a control issue that was encountered.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Statistics.xsd
Complex Type ControlIssueDetailsListType
Annotations

The ControlIssueDetailsListType defines a list of control issues.

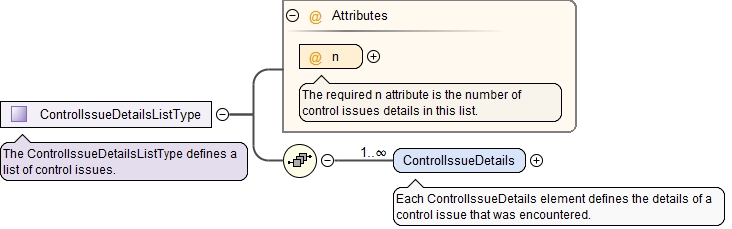

Diagram
Diagram Statistics_xsd_Complex_Type_ControlIssueDetailsListType.tmp#ControlIssueDetailsListType_n Statistics_xsd_Complex_Type_ControlIssueDetailsListType.tmp#ControlIssueDetailsListType_ControlIssueDetails
Used by
Children ControlIssueDetails
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of control issues details in this list.
Source

<xs:complexType name="ControlIssueDetailsListType">
  <xs:annotation>
    <xs:documentation>The ControlIssueDetailsListType defines a list of control issues.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="ControlIssueDetails" type="ControlIssueDetailsType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Each ControlIssueDetails element defines the details of a control issue that was encountered.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
  <xs:attribute name="n" type="NaturalType" use="required">
    <xs:annotation>
      <xs:documentation>The required n attribute is the number of control issues details in this list.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Statistics.xsd
Attribute ControlIssueDetailsListType / @n
Annotations

The required n attribute is the number of control issues details in this list.
Type NaturalType
Properties
use required
Facets
minInclusive 1
Used by
Source

<xs:attribute name="n" type="NaturalType" use="required">
  <xs:annotation>
    <xs:documentation>The required n attribute is the number of control issues details in this list.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Statistics.xsd
