Element ProductionStudyResultsType / ControlIssueDetailsList
Annotations

The optional ControlIssueDetailsList element is a list
of control issues that were encountered.
Diagram
Diagram Statistics_xsd_Complex_Type_ControlIssueDetailsListType.tmp#ControlIssueDetailsListType_n Statistics_xsd_Complex_Type_ControlIssueDetailsListType.tmp#ControlIssueDetailsListType_ControlIssueDetails Statistics_xsd_Complex_Type_ControlIssueDetailsListType.tmp#ControlIssueDetailsListType
Type ControlIssueDetailsListType
Properties
content complex
maxOccurs unbounded
Children ControlIssueDetails
Instance

<ControlIssueDetailsList n="" xmlns="http://qifstandards.org/xsd/qif3">
  <ControlIssueDetails>{1,unbounded}</ControlIssueDetails>
</ControlIssueDetailsList>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of control issues details in this list.
Source

<xs:element name="ControlIssueDetailsList" type="ControlIssueDetailsListType" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>The optional ControlIssueDetailsList element is a list of control issues that were encountered.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFStatistics.xsd
Complex Type ProductionStudyResultsType
Annotations

The ProductionStudyResultsType defines information that is related
to the results of an ongoing production statistical study where
samples are measured for statistical process control to ensure the
ongoing stability or capability of a manufacturing process.

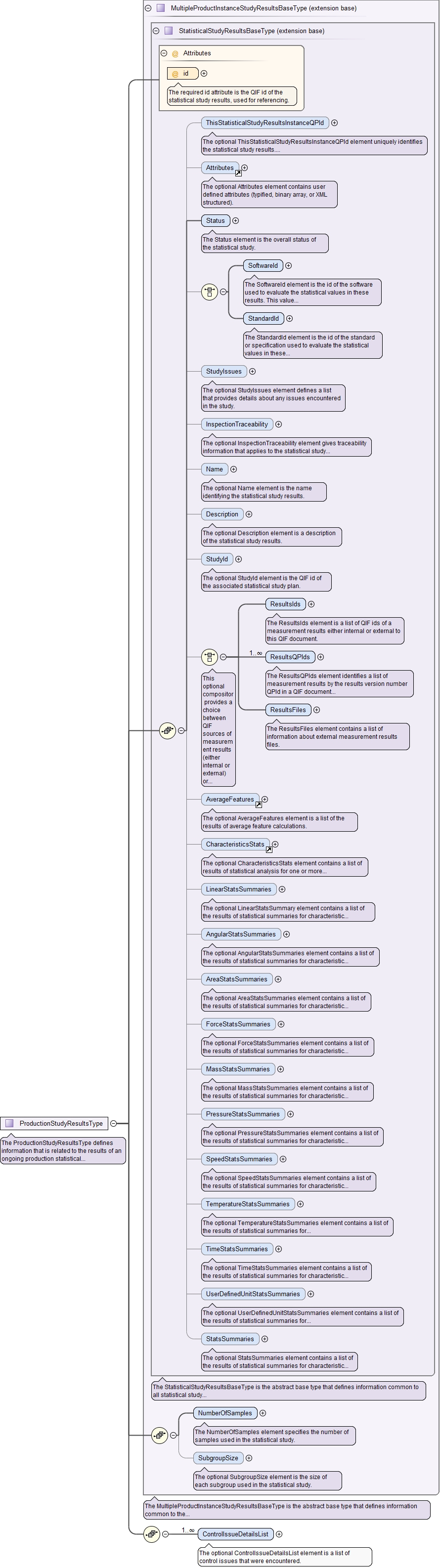

Diagram
Diagram QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_id QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_ThisStatisticalStudyResultsInstanceQPId Primitives_xsd_Element_Attributes.tmp#Attributes QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_Status QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_SoftwareId QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_StandardId QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_StudyIssues QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_InspectionTraceability QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_Name QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_Description QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_StudyId QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_ResultsIds QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_ResultsQPIds QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_ResultsFiles Statistics_xsd_Element_AverageFeatures.tmp#AverageFeatures Statistics_xsd_Element_CharacteristicsStats.tmp#CharacteristicsStats QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_LinearStatsSummaries QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_AngularStatsSummaries QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_AreaStatsSummaries QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_ForceStatsSummaries QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_MassStatsSummaries QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_PressureStatsSummaries QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_SpeedStatsSummaries QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_TemperatureStatsSummaries QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_TimeStatsSummaries QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_UserDefinedUnitStatsSummaries QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType_StatsSummaries QIFStatistics_xsd_Complex_Type_StatisticalStudyResultsBaseType.tmp#StatisticalStudyResultsBaseType QIFStatistics_xsd_Complex_Type_MultipleProductInstanceStudyResultsBaseType.tmp#MultipleProductInstanceStudyResultsBaseType_NumberOfSamples QIFStatistics_xsd_Complex_Type_MultipleProductInstanceStudyResultsBaseType.tmp#MultipleProductInstanceStudyResultsBaseType_SubgroupSize QIFStatistics_xsd_Complex_Type_MultipleProductInstanceStudyResultsBaseType.tmp#MultipleProductInstanceStudyResultsBaseType QIFStatistics_xsd_Complex_Type_ProductionStudyResultsType.tmp#ProductionStudyResultsType_ControlIssueDetailsList
Type extension of MultipleProductInstanceStudyResultsBaseType
Type hierarchy
Used by
Children AngularStatsSummaries, AreaStatsSummaries, Attributes, AverageFeatures, CharacteristicsStats, ControlIssueDetailsList, Description, ForceStatsSummaries, InspectionTraceability, LinearStatsSummaries, MassStatsSummaries, Name, NumberOfSamples, PressureStatsSummaries, ResultsFiles, ResultsIds, ResultsQPIds, SoftwareId, SpeedStatsSummaries, StandardId, StatsSummaries, Status, StudyId, StudyIssues, SubgroupSize, TemperatureStatsSummaries, ThisStatisticalStudyResultsInstanceQPId, TimeStatsSummaries, UserDefinedUnitStatsSummaries
Attributes
QName Type Use Annotation
id QIFIdType required
The required id attribute is the QIF id of the statistical study
results, used for referencing.
Source

<xs:complexType name="ProductionStudyResultsType">
  <xs:annotation>
    <xs:documentation>The ProductionStudyResultsType defines information that is related to the results of an ongoing production statistical study where samples are measured for statistical process control to ensure the ongoing stability or capability of a manufacturing process.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="MultipleProductInstanceStudyResultsBaseType">
      <xs:sequence>
        <xs:element name="ControlIssueDetailsList" type="ControlIssueDetailsListType" maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>The optional ControlIssueDetailsList element is a list of control issues that were encountered.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFStatistics.xsd
