Element FolderPartAssemblyBaseType / FolderIds
Annotations

The optional FolderIds element contains indices of sub-folders.
Diagram
Diagram Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType_n Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType_Id Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType
Type ArrayReferenceType
Properties
content complex
minOccurs 0
Children Id
Instance

<FolderIds n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Id xId="">{1,unbounded}</Id>
</FolderIds>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Id elements in this array.
Source

<xs:element name="FolderIds" type="ArrayReferenceType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional FolderIds element contains indices of sub-folders.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element FolderPartAssemblyBaseType / FeatureNominalIds
Annotations

The optional FeatureNominalIds element contains feature nominals for the product definition.
Diagram
Diagram Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_n Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_Id Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType
Type ArrayReferenceFullType
Properties
content complex
minOccurs 0
Children Id
Instance

<FeatureNominalIds n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Id asmPathId="" asmPathXId="" xId="">{1,unbounded}</Id>
</FeatureNominalIds>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Id elements in this array.
Source

<xs:element name="FeatureNominalIds" type="ArrayReferenceFullType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional FeatureNominalIds element contains feature nominals for the product definition.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element FolderPartAssemblyBaseType / FeatureZoneIds
Annotations

The optional FeatureZoneIds element contains feature zones for the product definition.
Diagram
Diagram Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_n Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_Id Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType
Type ArrayReferenceFullType
Properties
content complex
minOccurs 0
Children Id
Instance

<FeatureZoneIds n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Id asmPathId="" asmPathXId="" xId="">{1,unbounded}</Id>
</FeatureZoneIds>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Id elements in this array.
Source

<xs:element name="FeatureZoneIds" type="ArrayReferenceFullType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional FeatureZoneIds element contains feature zones for the product definition.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element FolderPartAssemblyBaseType / CharacteristicNominalIds
Annotations

The optional CharacteristicNominalIds element contains characteristic nominals for the product definition.
Diagram
Diagram Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_n Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_Id Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType
Type ArrayReferenceFullType
Properties
content complex
minOccurs 0
Children Id
Instance

<CharacteristicNominalIds n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Id asmPathId="" asmPathXId="" xId="">{1,unbounded}</Id>
</CharacteristicNominalIds>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Id elements in this array.
Source

<xs:element name="CharacteristicNominalIds" type="ArrayReferenceFullType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional CharacteristicNominalIds element contains characteristic nominals for the product definition.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element FolderPartAssemblyBaseType / NoteIds
Annotations

The optional NoteIds element contains notes for the product definition.
Diagram
Diagram Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_n Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_Id Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType
Type ArrayReferenceFullType
Properties
content complex
minOccurs 0
Children Id
Instance

<NoteIds n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Id asmPathId="" asmPathXId="" xId="">{1,unbounded}</Id>
</NoteIds>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Id elements in this array.
Source

<xs:element name="NoteIds" type="ArrayReferenceFullType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional NoteIds element contains notes for the product definition.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element FolderPartAssemblyBaseType / PartNoteIds
Annotations

The optional PartNoteIds element contains part notes for the product definition.
Diagram
Diagram Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_n Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_Id Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType
Type ArrayReferenceFullType
Properties
content complex
minOccurs 0
Children Id
Instance

<PartNoteIds n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Id asmPathId="" asmPathXId="" xId="">{1,unbounded}</Id>
</PartNoteIds>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Id elements in this array.
Source

<xs:element name="PartNoteIds" type="ArrayReferenceFullType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional PartNoteIds element contains part notes for the product definition.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element FolderPartAssemblyBaseType / DatumDefinitionIds
Annotations

The optional DatumDefinitionIds element contains datum definitions for the product definition.
Diagram
Diagram Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_n Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_Id Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType
Type ArrayReferenceFullType
Properties
content complex
minOccurs 0
Children Id
Instance

<DatumDefinitionIds n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Id asmPathId="" asmPathXId="" xId="">{1,unbounded}</Id>
</DatumDefinitionIds>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Id elements in this array.
Source

<xs:element name="DatumDefinitionIds" type="ArrayReferenceFullType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional DatumDefinitionIds element contains datum definitions for the product definition.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element FolderPartAssemblyBaseType / DatumTargetDefinitionIds
Annotations

The optional DatumTargetDefinitionIds element contains datum target definitions for the product definition.
Diagram
Diagram Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_n Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_Id Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType
Type ArrayReferenceFullType
Properties
content complex
minOccurs 0
Children Id
Instance

<DatumTargetDefinitionIds n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Id asmPathId="" asmPathXId="" xId="">{1,unbounded}</Id>
</DatumTargetDefinitionIds>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Id elements in this array.
Source

<xs:element name="DatumTargetDefinitionIds" type="ArrayReferenceFullType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional DatumTargetDefinitionIds element contains datum target definitions for the product definition.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element FolderPartAssemblyBaseType / DatumReferenceFrameIds
Annotations

The optional DatumReferenceFrameIds element contains datum reference frames for the product definition.
Diagram
Diagram Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_n Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType_Id Primitives_xsd_Complex_Type_ArrayReferenceFullType.tmp#ArrayReferenceFullType
Type ArrayReferenceFullType
Properties
content complex
minOccurs 0
Children Id
Instance

<DatumReferenceFrameIds n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Id asmPathId="" asmPathXId="" xId="">{1,unbounded}</Id>
</DatumReferenceFrameIds>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Id elements in this array.
Source

<xs:element name="DatumReferenceFrameIds" type="ArrayReferenceFullType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional DatumReferenceFrameIds element contains datum reference frames for the product definition.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element FolderPartAssemblyBaseType / BodyIds
Annotations

The optional BodyIds element is an array of body identifiers present in this block.
Diagram
Diagram Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType_n Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType_Id Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType
Type ArrayReferenceType
Properties
content complex
minOccurs 0
Children Id
Instance

<BodyIds n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Id xId="">{1,unbounded}</Id>
</BodyIds>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Id elements in this array.
Source

<xs:element name="BodyIds" type="ArrayReferenceType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional BodyIds element is an array of body identifiers present in this block.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element FolderPartAssemblyBaseType / CoordinateSystemIds
Annotations

The optional CoordinateSystemIds element is an array of coordinate system identifiers present in this block.
Diagram
Diagram Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType_n Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType_Id Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType
Type ArrayReferenceType
Properties
content complex
minOccurs 0
Children Id
Instance

<CoordinateSystemIds n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Id xId="">{1,unbounded}</Id>
</CoordinateSystemIds>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Id elements in this array.
Source

<xs:element name="CoordinateSystemIds" type="ArrayReferenceType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional CoordinateSystemIds element is an array of coordinate system identifiers present in this block.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element FolderPartAssemblyBaseType / AuxiliaryIds
Annotations

The optional AuxiliaryIds element is an array of auxiliary object identifiers present in this block.
Diagram
Diagram Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType_n Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType_Id Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType
Type ArrayReferenceType
Properties
content complex
minOccurs 0
Children Id
Instance

<AuxiliaryIds n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Id xId="">{1,unbounded}</Id>
</AuxiliaryIds>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Id elements in this array.
Source

<xs:element name="AuxiliaryIds" type="ArrayReferenceType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional AuxiliaryIds element is an array of auxiliary object identifiers present in this block.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element FolderPartAssemblyBaseType / ViewIds
Annotations

The optional ViewIds element is an array of view object identifiers present in this block.
Diagram
Diagram Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType_n Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType_Id Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType
Type ArrayReferenceType
Properties
content complex
minOccurs 0
Children Id
Instance

<ViewIds n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Id xId="">{1,unbounded}</Id>
</ViewIds>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Id elements in this array.
Source

<xs:element name="ViewIds" type="ArrayReferenceType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional ViewIds element is an array of view object identifiers present in this block.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element FolderPartAssemblyBaseType / PointCloudIds
Annotations

The optional PointCloudIds element is an array of point cloud identifiers present in this block.
Diagram
Diagram Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType_n Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType_Id Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType
Type ArrayReferenceType
Properties
content complex
minOccurs 0
Children Id
Instance

<PointCloudIds n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Id xId="">{1,unbounded}</Id>
</PointCloudIds>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Id elements in this array.
Source

<xs:element name="PointCloudIds" type="ArrayReferenceType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional PointCloudIds element is an array of point cloud identifiers present in this block.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Complex Type FolderPartAssemblyBaseType
Annotations

The FolderPartAssemblyBaseType is the abstract base type that defines information about a part/assembly folder.

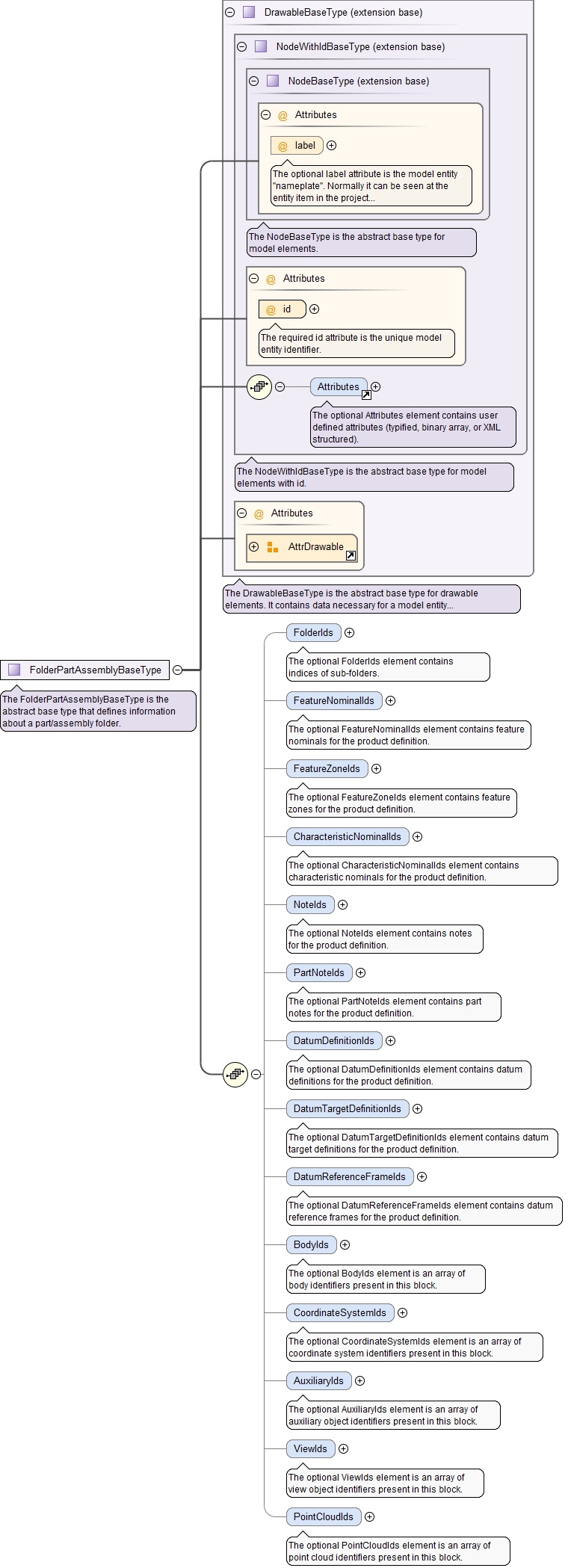

Diagram
Diagram PrimitivesPD_xsd_Complex_Type_NodeBaseType.tmp#NodeBaseType_label PrimitivesPD_xsd_Complex_Type_NodeBaseType.tmp#NodeBaseType PrimitivesPD_xsd_Complex_Type_NodeWithIdBaseType.tmp#NodeWithIdBaseType_id Primitives_xsd_Element_Attributes.tmp#Attributes PrimitivesPD_xsd_Complex_Type_NodeWithIdBaseType.tmp#NodeWithIdBaseType PrimitivesPD_xsd_Attribute_Group_AttrDrawable.tmp#AttrDrawable PrimitivesPD_xsd_Complex_Type_DrawableBaseType.tmp#DrawableBaseType QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_FolderIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_FeatureNominalIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_FeatureZoneIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_CharacteristicNominalIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_NoteIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_PartNoteIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_DatumDefinitionIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_DatumTargetDefinitionIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_DatumReferenceFrameIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_BodyIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_CoordinateSystemIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_AuxiliaryIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_ViewIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_PointCloudIds
Type extension of DrawableBaseType
Type hierarchy
Properties
abstract true
Used by
Children Attributes, AuxiliaryIds, BodyIds, CharacteristicNominalIds, CoordinateSystemIds, DatumDefinitionIds, DatumReferenceFrameIds, DatumTargetDefinitionIds, FeatureNominalIds, FeatureZoneIds, FolderIds, NoteIds, PartNoteIds, PointCloudIds, ViewIds
Attributes
QName Type Default Use Annotation
color ColorType optional
The optional color attribute defines the RGB color property of a model entity.
hidden xs:boolean 0 optional
The optional hidden attribute defines the visibility property of a model entity in the graphical window.
id QIFIdType required
The required id attribute is the unique model entity identifier.
label xs:string optional
The optional label attribute is the model entity "nameplate". Normally it can be seen at the entity item in the project tree.
size DoublePositiveType optional
The optional size attribute defines a recommended size for visualization of an infinite drawable element such as plane, cylinder, axis, etc., or objects without explicit geometric parameters (e.g. coordinate system).
transparency TransparencyType 0.0 optional
The optional transparency attribute defines the transparency property of a model entity.
Source

<xs:complexType name="FolderPartAssemblyBaseType" abstract="true">
  <xs:annotation>
    <xs:documentation>The FolderPartAssemblyBaseType is the abstract base type that defines information about a part/assembly folder.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="DrawableBaseType">
      <xs:sequence>
        <xs:element name="FolderIds" type="ArrayReferenceType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional FolderIds element contains indices of sub-folders.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="FeatureNominalIds" type="ArrayReferenceFullType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional FeatureNominalIds element contains feature nominals for the product definition.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="FeatureZoneIds" type="ArrayReferenceFullType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional FeatureZoneIds element contains feature zones for the product definition.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="CharacteristicNominalIds" type="ArrayReferenceFullType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional CharacteristicNominalIds element contains characteristic nominals for the product definition.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="NoteIds" type="ArrayReferenceFullType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional NoteIds element contains notes for the product definition.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="PartNoteIds" type="ArrayReferenceFullType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional PartNoteIds element contains part notes for the product definition.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="DatumDefinitionIds" type="ArrayReferenceFullType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional DatumDefinitionIds element contains datum definitions for the product definition.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="DatumTargetDefinitionIds" type="ArrayReferenceFullType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional DatumTargetDefinitionIds element contains datum target definitions for the product definition.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="DatumReferenceFrameIds" type="ArrayReferenceFullType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional DatumReferenceFrameIds element contains datum reference frames for the product definition.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="BodyIds" type="ArrayReferenceType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional BodyIds element is an array of body identifiers present in this block.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="CoordinateSystemIds" type="ArrayReferenceType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional CoordinateSystemIds element is an array of coordinate system identifiers present in this block.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="AuxiliaryIds" type="ArrayReferenceType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional AuxiliaryIds element is an array of auxiliary object identifiers present in this block.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="ViewIds" type="ArrayReferenceType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional ViewIds element is an array of view object identifiers present in this block.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="PointCloudIds" type="ArrayReferenceType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional PointCloudIds element is an array of point cloud identifiers present in this block.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
XML Schema documentation generated by ® XML Editor.
