Element FolderAssemblyType / ComponentIds
Annotations

The ComponentIds element is an array of component identifiers present in this product definition.
Diagram
Diagram Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType_n Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType_Id Primitives_xsd_Complex_Type_ArrayReferenceType.tmp#ArrayReferenceType
Type ArrayReferenceType
Properties
content complex
Children Id
Instance

<ComponentIds n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Id xId="">{1,unbounded}</Id>
</ComponentIds>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Id elements in this array.
Source

<xs:element name="ComponentIds" type="ArrayReferenceType">
  <xs:annotation>
    <xs:documentation>The ComponentIds element is an array of component identifiers present in this product definition.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Complex Type FolderAssemblyType
Annotations

The FolderAssemblyType is the assembly folder type. It contains a set of entities that define the assembly.

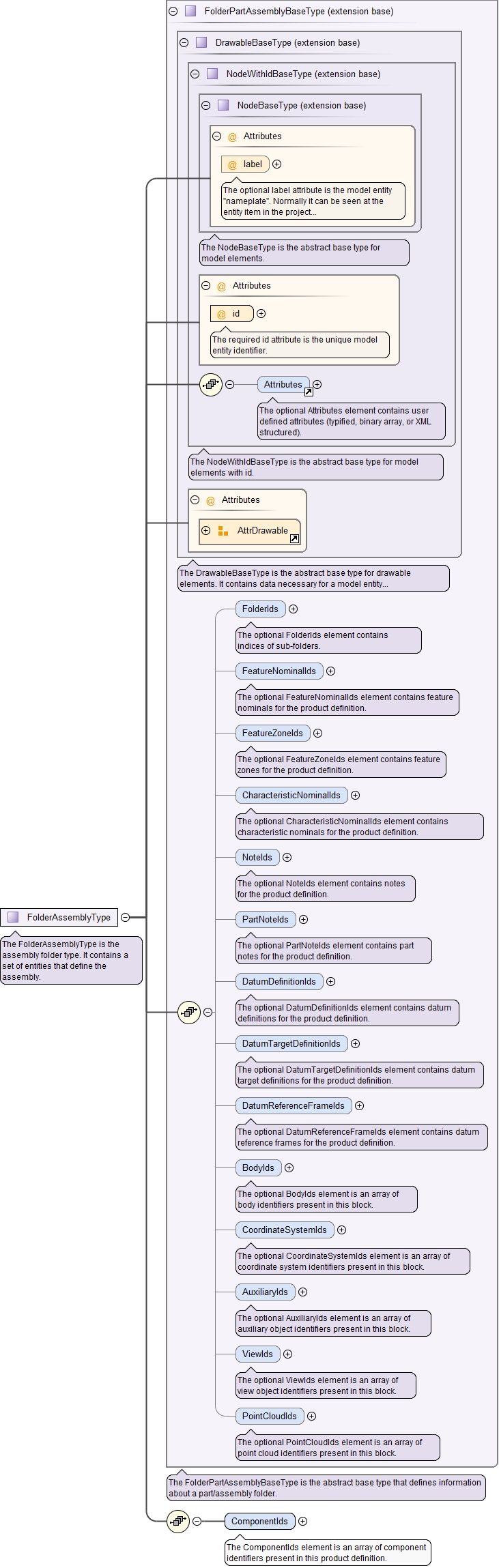

Diagram
Diagram PrimitivesPD_xsd_Complex_Type_NodeBaseType.tmp#NodeBaseType_label PrimitivesPD_xsd_Complex_Type_NodeBaseType.tmp#NodeBaseType PrimitivesPD_xsd_Complex_Type_NodeWithIdBaseType.tmp#NodeWithIdBaseType_id Primitives_xsd_Element_Attributes.tmp#Attributes PrimitivesPD_xsd_Complex_Type_NodeWithIdBaseType.tmp#NodeWithIdBaseType PrimitivesPD_xsd_Attribute_Group_AttrDrawable.tmp#AttrDrawable PrimitivesPD_xsd_Complex_Type_DrawableBaseType.tmp#DrawableBaseType QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_FolderIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_FeatureNominalIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_FeatureZoneIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_CharacteristicNominalIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_NoteIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_PartNoteIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_DatumDefinitionIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_DatumTargetDefinitionIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_DatumReferenceFrameIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_BodyIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_CoordinateSystemIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_AuxiliaryIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_ViewIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType_PointCloudIds QIFProduct_xsd_Complex_Type_FolderPartAssemblyBaseType.tmp#FolderPartAssemblyBaseType QIFProduct_xsd_Complex_Type_FolderAssemblyType.tmp#FolderAssemblyType_ComponentIds
Type extension of FolderPartAssemblyBaseType
Type hierarchy
Used by
Children Attributes, AuxiliaryIds, BodyIds, CharacteristicNominalIds, ComponentIds, CoordinateSystemIds, DatumDefinitionIds, DatumReferenceFrameIds, DatumTargetDefinitionIds, FeatureNominalIds, FeatureZoneIds, FolderIds, NoteIds, PartNoteIds, PointCloudIds, ViewIds
Attributes
QName Type Default Use Annotation
color ColorType optional
The optional color attribute defines the RGB color property of a model entity.
hidden xs:boolean 0 optional
The optional hidden attribute defines the visibility property of a model entity in the graphical window.
id QIFIdType required
The required id attribute is the unique model entity identifier.
label xs:string optional
The optional label attribute is the model entity "nameplate". Normally it can be seen at the entity item in the project tree.
size DoublePositiveType optional
The optional size attribute defines a recommended size for visualization of an infinite drawable element such as plane, cylinder, axis, etc., or objects without explicit geometric parameters (e.g. coordinate system).
transparency TransparencyType 0.0 optional
The optional transparency attribute defines the transparency property of a model entity.
Source

<xs:complexType name="FolderAssemblyType">
  <xs:annotation>
    <xs:documentation>The FolderAssemblyType is the assembly folder type. It contains a set of entities that define the assembly.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="FolderPartAssemblyBaseType">
      <xs:sequence>
        <xs:element name="ComponentIds" type="ArrayReferenceType">
          <xs:annotation>
            <xs:documentation>The ComponentIds element is an array of component identifiers present in this product definition.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
