Element ValidationPartAssemblyType / Area
Annotations

The optional Area element is the part/assembly area.
Diagram
Diagram
Type xs:double
Properties
content simple
minOccurs 0
Source

<xs:element name="Area" type="xs:double" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional Area element is the part/assembly area.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element ValidationPartAssemblyType / Centroid
Annotations

The optional Centroid element is the part/assembly center of mass.
Diagram
Diagram Primitives_xsd_Simple_Type_PointSimpleType.tmp#PointSimpleType
Type PointSimpleType
Type hierarchy
Properties
content simple
minOccurs 0
Facets
length 3
Source

<xs:element name="Centroid" type="PointSimpleType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional Centroid element is the part/assembly center of mass.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element ValidationPartAssemblyType / Volume
Annotations

The optional Volume element is the part/assembly volume.
Diagram
Diagram
Type xs:double
Properties
content simple
minOccurs 0
Source

<xs:element name="Volume" type="xs:double" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional Volume element is the part/assembly volume.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element ValidationPartAssemblyType / Box
Annotations

The optional Box element is the part/assembly bounding box.
Diagram
Diagram Primitives_xsd_Complex_Type_BoundingBoxAxisAlignedType.tmp#BoundingBoxAxisAlignedType_PointMin Primitives_xsd_Complex_Type_BoundingBoxAxisAlignedType.tmp#BoundingBoxAxisAlignedType_PointMax Primitives_xsd_Complex_Type_BoundingBoxAxisAlignedType.tmp#BoundingBoxAxisAlignedType
Type BoundingBoxAxisAlignedType
Properties
content complex
minOccurs 0
Children PointMax, PointMin
Instance

<Box xmlns="http://qifstandards.org/xsd/qif3">
  <PointMin>{1,1}</PointMin>
  <PointMax>{1,1}</PointMax>
</Box>
Source

<xs:element name="Box" type="BoundingBoxAxisAlignedType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional Box element is the part/assembly bounding box.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element ValidationPartAssemblyType / FacePoints
Annotations

The optional FacePoints element is a set of points that lie on the part/assembly faces.
Diagram
Diagram Primitives_xsd_Complex_Type_ValidationPointsType.tmp#ValidationPointsType_Points Primitives_xsd_Complex_Type_ValidationPointsType.tmp#ValidationPointsType_PointsBinary Primitives_xsd_Complex_Type_ValidationPointsType.tmp#ValidationPointsType_Directions Primitives_xsd_Complex_Type_ValidationPointsType.tmp#ValidationPointsType_DirectionsBinary Primitives_xsd_Complex_Type_ValidationPointsType.tmp#ValidationPointsType
Type ValidationPointsType
Properties
content complex
minOccurs 0
Children Directions, DirectionsBinary, Points, PointsBinary
Instance

<FacePoints xmlns="http://qifstandards.org/xsd/qif3">
  <Points count="" decimalPlaces="" linearUnit="" significantFigures="" validity="" xDecimalPlaces="" xSignificantFigures="" xValidity="" yDecimalPlaces="" ySignificantFigures="" yValidity="" zDecimalPlaces="" zSignificantFigures="" zValidity="">{1,1}</Points>
  <PointsBinary count="" sizeElement="">{1,1}</PointsBinary>
  <Directions count="" decimalPlaces="" linearUnit="" significantFigures="" validity="" xDecimalPlaces="" xSignificantFigures="" xValidity="" yDecimalPlaces="" ySignificantFigures="" yValidity="" zDecimalPlaces="" zSignificantFigures="" zValidity="">{1,1}</Directions>
  <DirectionsBinary count="" sizeElement="">{1,1}</DirectionsBinary>
</FacePoints>
Source

<xs:element name="FacePoints" type="ValidationPointsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional FacePoints element is a set of points that lie on the part/assembly faces.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element ValidationPartAssemblyType / EdgePoints
Annotations

The optional EdgePoints element is a set of points that lie on the part/assembly edges.
Diagram
Diagram Primitives_xsd_Complex_Type_ValidationPointsType.tmp#ValidationPointsType_Points Primitives_xsd_Complex_Type_ValidationPointsType.tmp#ValidationPointsType_PointsBinary Primitives_xsd_Complex_Type_ValidationPointsType.tmp#ValidationPointsType_Directions Primitives_xsd_Complex_Type_ValidationPointsType.tmp#ValidationPointsType_DirectionsBinary Primitives_xsd_Complex_Type_ValidationPointsType.tmp#ValidationPointsType
Type ValidationPointsType
Properties
content complex
minOccurs 0
Children Directions, DirectionsBinary, Points, PointsBinary
Instance

<EdgePoints xmlns="http://qifstandards.org/xsd/qif3">
  <Points count="" decimalPlaces="" linearUnit="" significantFigures="" validity="" xDecimalPlaces="" xSignificantFigures="" xValidity="" yDecimalPlaces="" ySignificantFigures="" yValidity="" zDecimalPlaces="" zSignificantFigures="" zValidity="">{1,1}</Points>
  <PointsBinary count="" sizeElement="">{1,1}</PointsBinary>
  <Directions count="" decimalPlaces="" linearUnit="" significantFigures="" validity="" xDecimalPlaces="" xSignificantFigures="" xValidity="" yDecimalPlaces="" ySignificantFigures="" yValidity="" zDecimalPlaces="" zSignificantFigures="" zValidity="">{1,1}</Directions>
  <DirectionsBinary count="" sizeElement="">{1,1}</DirectionsBinary>
</EdgePoints>
Source

<xs:element name="EdgePoints" type="ValidationPointsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional EdgePoints element is a set of points that lie on the part/assembly edges.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
Element ValidationPartAssemblyType / Instances
Annotations

The optional Instances element is an array of instance validation properties.
Diagram
Diagram QIFProduct_xsd_Complex_Type_ValidationPartAssemblyInstancesType.tmp#ValidationPartAssemblyInstancesType_n QIFProduct_xsd_Complex_Type_ValidationPartAssemblyInstancesType.tmp#ValidationPartAssemblyInstancesType_Instance QIFProduct_xsd_Complex_Type_ValidationPartAssemblyInstancesType.tmp#ValidationPartAssemblyInstancesType
Type ValidationPartAssemblyInstancesType
Properties
content complex
minOccurs 0
Children Instance
Instance

<Instances n="" xmlns="http://qifstandards.org/xsd/qif3">
  <Instance>{1,unbounded}</Instance>
</Instances>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of Instance in this set.
Source

<xs:element name="Instances" type="ValidationPartAssemblyInstancesType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional Instances element is an array of instance validation properties.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd

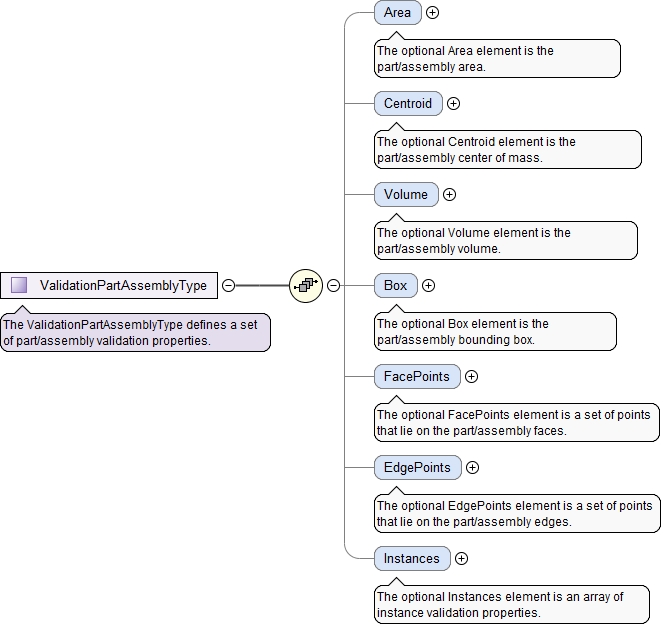

Complex Type ValidationPartAssemblyType
Annotations

The ValidationPartAssemblyType defines a set of part/assembly validation properties.
Diagram
Diagram QIFProduct_xsd_Complex_Type_ValidationPartAssemblyType.tmp#ValidationPartAssemblyType_Area QIFProduct_xsd_Complex_Type_ValidationPartAssemblyType.tmp#ValidationPartAssemblyType_Centroid QIFProduct_xsd_Complex_Type_ValidationPartAssemblyType.tmp#ValidationPartAssemblyType_Volume QIFProduct_xsd_Complex_Type_ValidationPartAssemblyType.tmp#ValidationPartAssemblyType_Box QIFProduct_xsd_Complex_Type_ValidationPartAssemblyType.tmp#ValidationPartAssemblyType_FacePoints QIFProduct_xsd_Complex_Type_ValidationPartAssemblyType.tmp#ValidationPartAssemblyType_EdgePoints QIFProduct_xsd_Complex_Type_ValidationPartAssemblyType.tmp#ValidationPartAssemblyType_Instances
Used by
Children Area, Box, Centroid, EdgePoints, FacePoints, Instances, Volume
Source

<xs:complexType name="ValidationPartAssemblyType">
  <xs:annotation>
    <xs:documentation>The ValidationPartAssemblyType defines a set of part/assembly validation properties.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Area" type="xs:double" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The optional Area element is the part/assembly area.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Centroid" type="PointSimpleType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The optional Centroid element is the part/assembly center of mass.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Volume" type="xs:double" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The optional Volume element is the part/assembly volume.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Box" type="BoundingBoxAxisAlignedType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The optional Box element is the part/assembly bounding box.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="FacePoints" type="ValidationPointsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The optional FacePoints element is a set of points that lie on the part/assembly faces.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="EdgePoints" type="ValidationPointsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The optional EdgePoints element is a set of points that lie on the part/assembly edges.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Instances" type="ValidationPartAssemblyInstancesType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The optional Instances element is an array of instance validation properties.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFApplications/QIFProduct.xsd
