Schema documentation for component ScaleCoefficient

The optional ScaleCoefficient element is an amount by which all elements representing distances in the QIFDocument/QIFProduct and QIFDocument/Features portions of an instance file are scaled. The default value is 1.The type of all values to be scaled is either LinearValueType or xs:double. To convert such values in an instance file to actual values, divide by the ScaleCoefficient. To record actual values in an instance file, multiply the actual value by the ScaleCoefficient.

<xs:element name="ScaleCoefficient" type="xs:double" default="1.0" minOccurs="0"> <xs:annotation> <xs:documentation>The optional ScaleCoefficient element is an amount by which all elements representing distances in the QIFDocument/QIFProduct and QIFDocument/Features portions of an instance file are scaled. The default value is 1.The type of all values to be scaled is either LinearValueType or xs:double. To convert such values in an instance file to actual values, divide by the ScaleCoefficient. To record actual values in an instance file, multiply the actual value by the ScaleCoefficient.</xs:documentation> </xs:annotation> </xs:element>

<xs:element name="ModelTolerance" type="xs:double" minOccurs="0"> <xs:annotation> <xs:documentation>The optional ModelTolerance element is the model tolerance. This value specifies the smallest distance between coordinates, in the global units defined above, that shall be considered as distinct.</xs:documentation> </xs:annotation> </xs:element>

<xs:element name="MassPropertyTolerance" type="xs:double" minOccurs="0"> <xs:annotation> <xs:documentation>The optional EpsMassProperty element specifies a tolerance used for calculation of the mass properties of model entities.</xs:documentation> </xs:annotation> </xs:element>

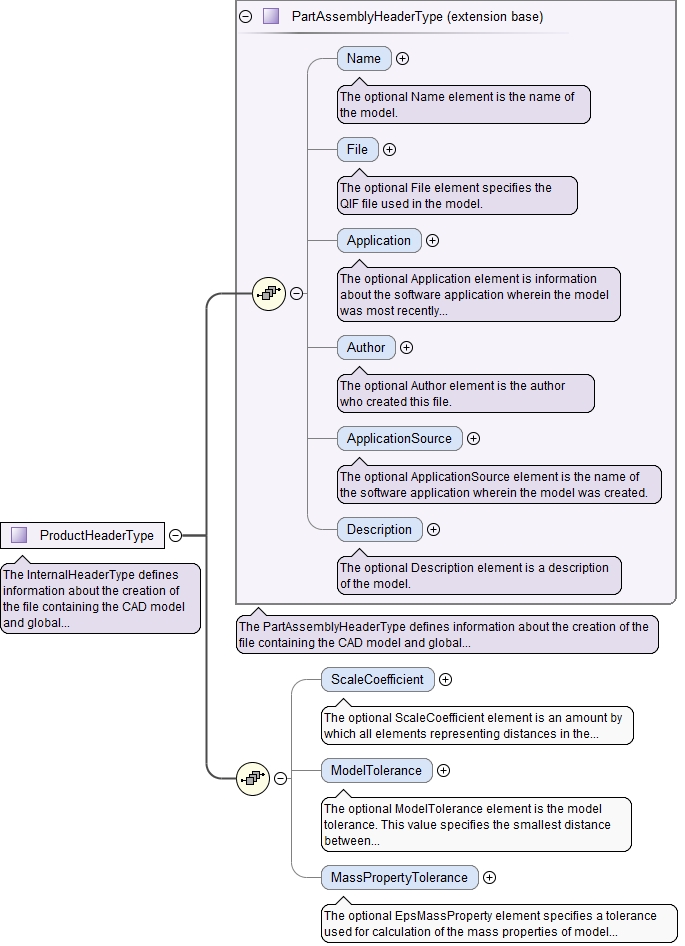

<xs:complexType name="ProductHeaderType">
  <xs:annotation>
    <xs:documentation>The InternalHeaderType defines information about the creation of the file containing the CAD model and global parameters of the model.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="PartAssemblyHeaderType">
      <xs:sequence>
        <xs:element name="ScaleCoefficient" type="xs:double" default="1.0" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional ScaleCoefficient element is an amount by which all elements representing distances in the QIFDocument/QIFProduct and QIFDocument/Features portions of an instance file are scaled. The default value is 1.The type of all values to be scaled is either LinearValueType or xs:double. To convert such values in an instance file to actual values, divide by the ScaleCoefficient. To record actual values in an instance file, multiply the actual value by the ScaleCoefficient.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="ModelTolerance" type="xs:double" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional ModelTolerance element is the model tolerance. This value specifies the smallest distance between coordinates, in the global units defined above, that shall be considered as distinct.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="MassPropertyTolerance" type="xs:double" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional EpsMassProperty element specifies a tolerance used for calculation of the mass properties of model entities.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
