Element TorusTransformType / BaseTorus
Annotations

The BaseTorus element identifies the torus to be transformed.
Diagram
Diagram IntermediatesPMI_xsd_Complex_Type_BaseFeatureType.tmp#BaseFeatureType_ReferencedComponent IntermediatesPMI_xsd_Complex_Type_BaseFeatureType.tmp#BaseFeatureType_FeatureId IntermediatesPMI_xsd_Complex_Type_BaseFeatureType.tmp#BaseFeatureType
Type BaseFeatureType
Properties
content complex
Children FeatureId, ReferencedComponent
Instance

<BaseTorus xmlns="http://qifstandards.org/xsd/qif3">
  <ReferencedComponent>{1,1}</ReferencedComponent>
  <FeatureId asmPathId="" asmPathXId="" xId="">{1,1}</FeatureId>
</BaseTorus>
Source

<xs:element name="BaseTorus" type="BaseFeatureType">
  <xs:annotation>
    <xs:documentation>The BaseTorus element identifies the torus to be transformed.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Features.xsd
Element TorusTransformType / Transformation
Annotations

The Transformation element identifies the coordinate system to be used to transform the torus.
Diagram
Diagram Features_xsd_Complex_Type_TransformationReferenceType.tmp#TransformationReferenceType_ReferencedComponent Features_xsd_Complex_Type_TransformationReferenceType.tmp#TransformationReferenceType_CoordinateSystemId Features_xsd_Complex_Type_TransformationReferenceType.tmp#TransformationReferenceType_SequenceNumber Features_xsd_Complex_Type_TransformationReferenceType.tmp#TransformationReferenceType
Type TransformationReferenceType
Properties
content complex
Children CoordinateSystemId, ReferencedComponent, SequenceNumber
Instance

<Transformation xmlns="http://qifstandards.org/xsd/qif3">
  <ReferencedComponent>{1,1}</ReferencedComponent>
  <CoordinateSystemId asmPathId="" asmPathXId="" xId="">{1,1}</CoordinateSystemId>
  <SequenceNumber>{1,1}</SequenceNumber>
</Transformation>
Source

<xs:element name="Transformation" type="TransformationReferenceType">
  <xs:annotation>
    <xs:documentation>The Transformation element identifies the coordinate system to be used to transform the torus.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Features.xsd
Complex Type TorusTransformType
Annotations

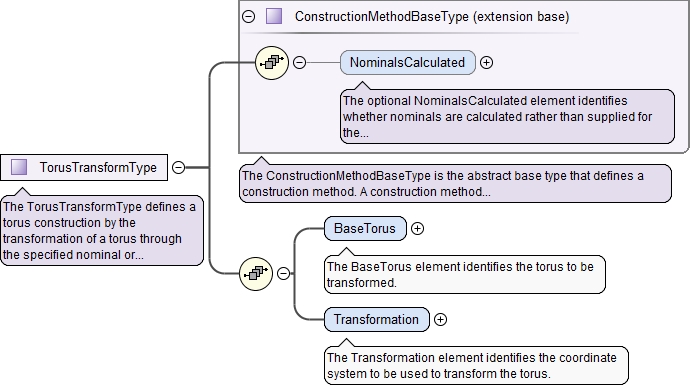

The TorusTransformType defines a torus construction by the transformation of a torus through the specified nominal or actual coordinate system.
Diagram
Diagram Features_xsd_Complex_Type_ConstructionMethodBaseType.tmp#ConstructionMethodBaseType_NominalsCalculated Features_xsd_Complex_Type_ConstructionMethodBaseType.tmp#ConstructionMethodBaseType Features_xsd_Complex_Type_TorusTransformType.tmp#TorusTransformType_BaseTorus Features_xsd_Complex_Type_TorusTransformType.tmp#TorusTransformType_Transformation
Type extension of ConstructionMethodBaseType
Type hierarchy
Used by
Children BaseTorus, NominalsCalculated, Transformation
Source

<xs:complexType name="TorusTransformType">
  <xs:annotation>
    <xs:documentation>The TorusTransformType defines a torus construction by the transformation of a torus through the specified nominal or actual coordinate system.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="ConstructionMethodBaseType">
      <xs:sequence>
        <xs:element name="BaseTorus" type="BaseFeatureType">
          <xs:annotation>
            <xs:documentation>The BaseTorus element identifies the torus to be transformed.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Transformation" type="TransformationReferenceType">
          <xs:annotation>
            <xs:documentation>The Transformation element identifies the coordinate system to be used to transform the torus.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Features.xsd
