Element WeldOneSideParametersExtendSizeType / Size

Annotations

The optional Size element specifies the size/strength of a one-sided weld. In the case of a bevel weld, this parameter should be interpreted as its depth.

Diagram

Type

FractionType

Properties

content	complex
minOccurs	0

Children

Denominator, Numerator

Instance

<Size xmlns="http://qifstandards.org/xsd/qif3">
  <Numerator>{1,1}</Numerator>
  <Denominator>{1,1}</Denominator>
</Size>

Source

<xs:element name="Size" type="FractionType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional Size element specifies the size/strength of a one-sided weld. In the case of a bevel weld, this parameter should be interpreted as its depth.</xs:documentation>
  </xs:annotation>
</xs:element>

Schema location

file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Characteristics.xsd

Complex Type WeldOneSideParametersExtendSizeType

Annotations

The WeldOneSideParametersExtendSizeType defines the extended by size one-sided welding parameters.

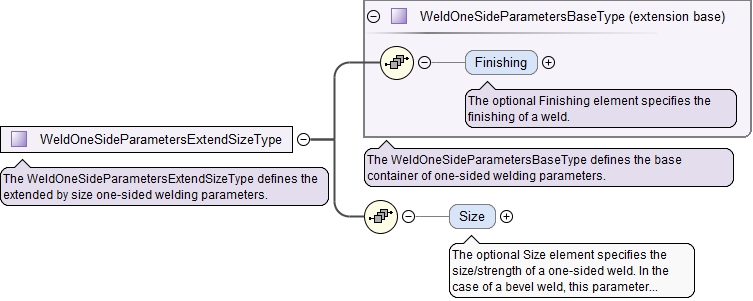

Diagram

Type

extension of WeldOneSideParametersBaseType

Type hierarchy

WeldOneSideParametersBaseType
- WeldOneSideParametersExtendSizeType

Used by

Complex Types	WeldFilletOneSideInBothSidesType, WeldGrooveOneSideParametersType, WeldOneSideParametersExtendType, WeldSpotOneSideParametersType
Elements	WeldEdgeCharacteristicMeasurementType/SideParameters, WeldEdgeCharacteristicNominalType/SideParameters, WeldSurfacingCharacteristicMeasurementType/ArrowSideParameters, WeldSurfacingCharacteristicNominalType/ArrowSideParameters

Children

Finishing, Size

Source

<xs:complexType name="WeldOneSideParametersExtendSizeType">
  <xs:annotation>
    <xs:documentation>The WeldOneSideParametersExtendSizeType defines the extended by size one-sided welding parameters.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="WeldOneSideParametersBaseType">
      <xs:sequence>
        <xs:element name="Size" type="FractionType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The optional Size element specifies the size/strength of a one-sided weld. In the case of a bevel weld, this parameter should be interpreted as its depth.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

Schema location

file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Characteristics.xsd
