Element CharacteristicAspectsListsType / FormalStandardId
Annotations

The FormalStandardId element is the id of the standard or specification against which the inspection characteristics are to be evaluated.
Diagram
Diagram Primitives_xsd_Simple_Type_QIFReferenceBaseType.tmp#QIFReferenceBaseType Primitives_xsd_Complex_Type_QIFReferenceType.tmp#QIFReferenceType_xId Primitives_xsd_Complex_Type_QIFReferenceType.tmp#QIFReferenceType
Type QIFReferenceType
Type hierarchy
Properties
content complex
Attributes
QName Type Use Annotation
xId QIFReferenceSimpleType optional
The optional xId attribute is a reference to the id of a QIF object in an external document. A QIF object in an external QIF document can be referenced by using references to two QIF ids: the id of the external document reference of type ExternalQIFDocumentReferenceType found in the local document and the id of the object found in the external document.
Source

<xs:element name="FormalStandardId" type="QIFReferenceType">
  <xs:annotation>
    <xs:documentation>The FormalStandardId element is the id of the standard or specification against which the inspection characteristics are to be evaluated.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Characteristics.xsd
Element CharacteristicAspectsListsType / CharacteristicDefinitions
Annotations

The CharacteristicDefinitions element is a list of characteristic definitions.
Diagram
Diagram Characteristics_xsd_Complex_Type_CharacteristicDefinitionsType.tmp#CharacteristicDefinitionsType_n Characteristics_xsd_Element_CharacteristicDefinition.tmp#CharacteristicDefinition Characteristics_xsd_Complex_Type_CharacteristicDefinitionsType.tmp#CharacteristicDefinitionsType
Type CharacteristicDefinitionsType
Properties
content complex
Children CharacteristicDefinition
Instance

<CharacteristicDefinitions n="" xmlns="http://qifstandards.org/xsd/qif3">
  <CharacteristicDefinition id="">{1,unbounded}</CharacteristicDefinition>
</CharacteristicDefinitions>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of characteristic definitions in this set.
Source

<xs:element name="CharacteristicDefinitions" type="CharacteristicDefinitionsType">
  <xs:annotation>
    <xs:documentation>The CharacteristicDefinitions element is a list of characteristic definitions.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Characteristics.xsd
Element CharacteristicAspectsListsType / DefaultCharacteristicDefinitions
Annotations

The optional DefaultCharacteristicDefinitions element is a list of default or "unless otherwise specified" characteristic definitions.
Diagram
Diagram Characteristics_xsd_Complex_Type_CharacteristicDefinitionsType.tmp#CharacteristicDefinitionsType_n Characteristics_xsd_Element_CharacteristicDefinition.tmp#CharacteristicDefinition Characteristics_xsd_Complex_Type_CharacteristicDefinitionsType.tmp#CharacteristicDefinitionsType
Type CharacteristicDefinitionsType
Properties
content complex
minOccurs 0
Children CharacteristicDefinition
Instance

<DefaultCharacteristicDefinitions n="" xmlns="http://qifstandards.org/xsd/qif3">
  <CharacteristicDefinition id="">{1,unbounded}</CharacteristicDefinition>
</DefaultCharacteristicDefinitions>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of characteristic definitions in this set.
Source

<xs:element name="DefaultCharacteristicDefinitions" type="CharacteristicDefinitionsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional DefaultCharacteristicDefinitions element is a list of default or "unless otherwise specified" characteristic definitions.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Characteristics.xsd
Element CharacteristicAspectsListsType / DefaultToleranceDefinitions
Annotations

The optional DefaultToleranceDefinitions element is a list of default or "unless otherwise specified" tolerance definitions with allow a tolerance definition to be shared among characteristic definitions of different types.
Diagram
Diagram Characteristics_xsd_Complex_Type_ToleranceDefinitionsType.tmp#ToleranceDefinitionsType_n Characteristics_xsd_Complex_Type_ToleranceDefinitionsType.tmp#ToleranceDefinitionsType_LinearTolerance Characteristics_xsd_Complex_Type_ToleranceDefinitionsType.tmp#ToleranceDefinitionsType_AngularTolerance Characteristics_xsd_Complex_Type_ToleranceDefinitionsType.tmp#ToleranceDefinitionsType
Type ToleranceDefinitionsType
Properties
content complex
minOccurs 0
Children AngularTolerance, LinearTolerance
Instance

<DefaultToleranceDefinitions n="" xmlns="http://qifstandards.org/xsd/qif3">
  <LinearTolerance id="">{1,1}</LinearTolerance>
  <AngularTolerance id="">{1,1}</AngularTolerance>
</DefaultToleranceDefinitions>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of tolerance definitions in this set.
Source

<xs:element name="DefaultToleranceDefinitions" type="ToleranceDefinitionsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional DefaultToleranceDefinitions element is a list of default or "unless otherwise specified" tolerance definitions with allow a tolerance definition to be shared among characteristic definitions of different types.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Characteristics.xsd
Element CharacteristicAspectsListsType / CharacteristicNominals
Annotations

The CharacteristicNominals element is a list of characteristic nominals.
Diagram
Diagram Characteristics_xsd_Complex_Type_CharacteristicNominalsType.tmp#CharacteristicNominalsType_n Characteristics_xsd_Element_CharacteristicNominal.tmp#CharacteristicNominal Characteristics_xsd_Complex_Type_CharacteristicNominalsType.tmp#CharacteristicNominalsType
Type CharacteristicNominalsType
Properties
content complex
Children CharacteristicNominal
Instance

<CharacteristicNominals n="" xmlns="http://qifstandards.org/xsd/qif3">
  <CharacteristicNominal id="">{1,unbounded}</CharacteristicNominal>
</CharacteristicNominals>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of characteristic nominals in this set.
Source

<xs:element name="CharacteristicNominals" type="CharacteristicNominalsType">
  <xs:annotation>
    <xs:documentation>The CharacteristicNominals element is a list of characteristic nominals.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Characteristics.xsd
Element CharacteristicAspectsListsType / CharacteristicItems
Annotations

The optional CharacteristicItems element is a list of characteristic items. This is the entry point in QIF for the information contained in a bill of characteristics (BOC).
Diagram
Diagram Characteristics_xsd_Complex_Type_CharacteristicItemsType.tmp#CharacteristicItemsType_n Characteristics_xsd_Element_CharacteristicItem.tmp#CharacteristicItem Characteristics_xsd_Complex_Type_CharacteristicItemsType.tmp#CharacteristicItemsType
Type CharacteristicItemsType
Properties
content complex
minOccurs 0
Children CharacteristicItem
Instance

<CharacteristicItems n="" xmlns="http://qifstandards.org/xsd/qif3">
  <CharacteristicItem id="">{1,unbounded}</CharacteristicItem>
</CharacteristicItems>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of characteristic items in this set.
Source

<xs:element name="CharacteristicItems" type="CharacteristicItemsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional CharacteristicItems element is a list of characteristic items. This is the entry point in QIF for the information contained in a bill of characteristics (BOC).</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Characteristics.xsd
Element CharacteristicAspectsListsType / CharacteristicGroups
Annotations

The optional CharacteristicGroups element is a list of characteristic groups.
Diagram
Diagram Characteristics_xsd_Complex_Type_CharacteristicGroupsType.tmp#CharacteristicGroupsType_n Characteristics_xsd_Element_CharacteristicGroup.tmp#CharacteristicGroup Characteristics_xsd_Complex_Type_CharacteristicGroupsType.tmp#CharacteristicGroupsType
Type CharacteristicGroupsType
Properties
content complex
minOccurs 0
Children CharacteristicGroup
Instance

<CharacteristicGroups n="" xmlns="http://qifstandards.org/xsd/qif3">
  <CharacteristicGroup id="">{1,unbounded}</CharacteristicGroup>
</CharacteristicGroups>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of characteristic groups in this set.
Source

<xs:element name="CharacteristicGroups" type="CharacteristicGroupsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional CharacteristicGroups element is a list of characteristic groups.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Characteristics.xsd
Element CharacteristicAspectsListsType / SimultaneousRequirementGroups
Annotations

The optional SimultaneousRequirementGroups element is a list of simultaneous requirement groups.
Diagram
Diagram Characteristics_xsd_Complex_Type_SimultaneousRequirementGroupsType.tmp#SimultaneousRequirementGroupsType_n Characteristics_xsd_Complex_Type_SimultaneousRequirementGroupsType.tmp#SimultaneousRequirementGroupsType_SimultaneousRequirementGroup Characteristics_xsd_Complex_Type_SimultaneousRequirementGroupsType.tmp#SimultaneousRequirementGroupsType
Type SimultaneousRequirementGroupsType
Properties
content complex
minOccurs 0
Children SimultaneousRequirementGroup
Instance

<SimultaneousRequirementGroups n="" xmlns="http://qifstandards.org/xsd/qif3">
  <SimultaneousRequirementGroup>{1,unbounded}</SimultaneousRequirementGroup>
</SimultaneousRequirementGroups>
Attributes
QName Type Use Annotation
n NaturalType required
The required n attribute is the number of simultaneous requirement groups in this set.
Source

<xs:element name="SimultaneousRequirementGroups" type="SimultaneousRequirementGroupsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The optional SimultaneousRequirementGroups element is a list of simultaneous requirement groups.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Characteristics.xsd

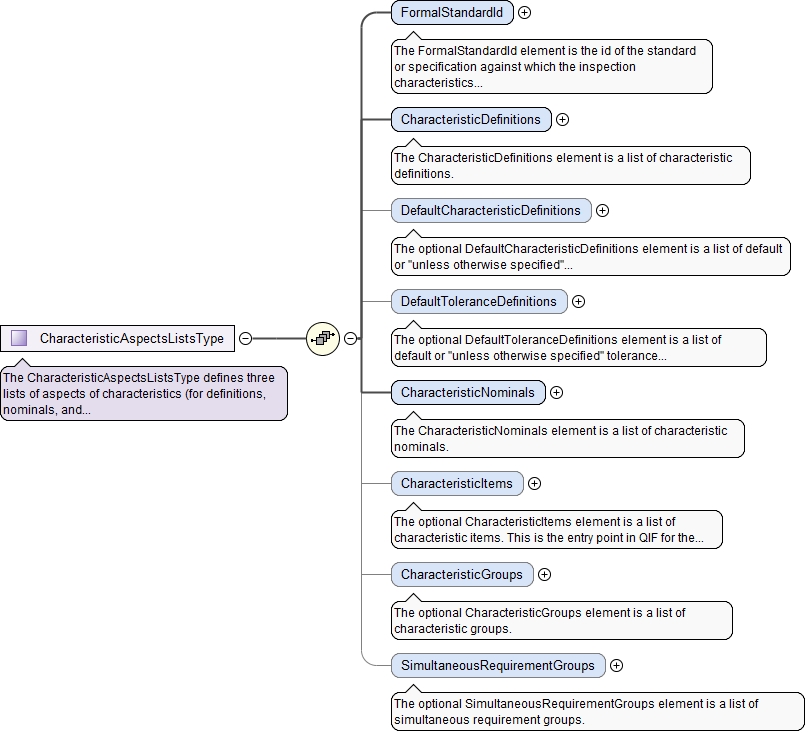

Complex Type CharacteristicAspectsListsType
Annotations

The CharacteristicAspectsListsType defines three lists of aspects of characteristics (for definitions, nominals, and items). A list of characteristic measurements is given elsewhere in the QIF model.
Diagram
Diagram Characteristics_xsd_Complex_Type_CharacteristicAspectsListsType.tmp#CharacteristicAspectsListsType_FormalStandardId Characteristics_xsd_Complex_Type_CharacteristicAspectsListsType.tmp#CharacteristicAspectsListsType_CharacteristicDefinitions Characteristics_xsd_Complex_Type_CharacteristicAspectsListsType.tmp#CharacteristicAspectsListsType_DefaultCharacteristicDefinitions Characteristics_xsd_Complex_Type_CharacteristicAspectsListsType.tmp#CharacteristicAspectsListsType_DefaultToleranceDefinitions Characteristics_xsd_Complex_Type_CharacteristicAspectsListsType.tmp#CharacteristicAspectsListsType_CharacteristicNominals Characteristics_xsd_Complex_Type_CharacteristicAspectsListsType.tmp#CharacteristicAspectsListsType_CharacteristicItems Characteristics_xsd_Complex_Type_CharacteristicAspectsListsType.tmp#CharacteristicAspectsListsType_CharacteristicGroups Characteristics_xsd_Complex_Type_CharacteristicAspectsListsType.tmp#CharacteristicAspectsListsType_SimultaneousRequirementGroups
Used by
Element Characteristics
Children CharacteristicDefinitions, CharacteristicGroups, CharacteristicItems, CharacteristicNominals, DefaultCharacteristicDefinitions, DefaultToleranceDefinitions, FormalStandardId, SimultaneousRequirementGroups
Source

<xs:complexType name="CharacteristicAspectsListsType">
  <xs:annotation>
    <xs:documentation>The CharacteristicAspectsListsType defines three lists of aspects of characteristics (for definitions, nominals, and items). A list of characteristic measurements is given elsewhere in the QIF model.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="FormalStandardId" type="QIFReferenceType">
      <xs:annotation>
        <xs:documentation>The FormalStandardId element is the id of the standard or specification against which the inspection characteristics are to be evaluated.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CharacteristicDefinitions" type="CharacteristicDefinitionsType">
      <xs:annotation>
        <xs:documentation>The CharacteristicDefinitions element is a list of characteristic definitions.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DefaultCharacteristicDefinitions" type="CharacteristicDefinitionsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The optional DefaultCharacteristicDefinitions element is a list of default or "unless otherwise specified" characteristic definitions.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DefaultToleranceDefinitions" type="ToleranceDefinitionsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The optional DefaultToleranceDefinitions element is a list of default or "unless otherwise specified" tolerance definitions with allow a tolerance definition to be shared among characteristic definitions of different types.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CharacteristicNominals" type="CharacteristicNominalsType">
      <xs:annotation>
        <xs:documentation>The CharacteristicNominals element is a list of characteristic nominals.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CharacteristicItems" type="CharacteristicItemsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The optional CharacteristicItems element is a list of characteristic items. This is the entry point in QIF for the information contained in a bill of characteristics (BOC).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CharacteristicGroups" type="CharacteristicGroupsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The optional CharacteristicGroups element is a list of characteristic groups.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SimultaneousRequirementGroups" type="SimultaneousRequirementGroupsType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The optional SimultaneousRequirementGroups element is a list of simultaneous requirement groups.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Characteristics.xsd
