Element FileUnits
Annotations

The global FileUnits element is the units to use in an instance file.

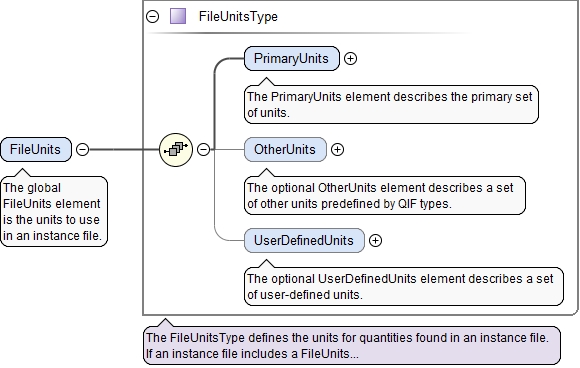

Diagram
Diagram Units_xsd_Complex_Type_FileUnitsType.tmp#FileUnitsType_PrimaryUnits Units_xsd_Complex_Type_FileUnitsType.tmp#FileUnitsType_OtherUnits Units_xsd_Complex_Type_FileUnitsType.tmp#FileUnitsType_UserDefinedUnits Units_xsd_Complex_Type_FileUnitsType.tmp#FileUnitsType
Type FileUnitsType
Properties
content complex
Used by
Complex Type QIFDocumentType
Children OtherUnits, PrimaryUnits, UserDefinedUnits
Instance

<FileUnits xmlns="http://qifstandards.org/xsd/qif3">
  <PrimaryUnits>{1,1}</PrimaryUnits>
  <OtherUnits n="">{0,1}</OtherUnits>
  <UserDefinedUnits n="">{0,1}</UserDefinedUnits>
</FileUnits>
Source

<xs:element name="FileUnits" type="FileUnitsType">
  <xs:annotation>
    <xs:documentation>The global FileUnits element is the units to use in an instance file.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:////Q:/kramer/qif3.0/model/QIFforHTMLxsd/QIFLibrary/Units.xsd
